型號 | 纖維類型 | 織物結構 | 經緯密度 | 單位面積質量 | 厚度 | 幅寬 | ||
Reinforcement Yarn | Fiber Count (10mm) | |||||||
Style | 經向 | 緯向 | Weave | 經向 | 緯向 | Weight | Thickness | Width |
Warp | Weft | Warp | Weft | g/m2 | mm | cm | ||
碳纖維布 Carbon Fiber Fabrics | ||||||||

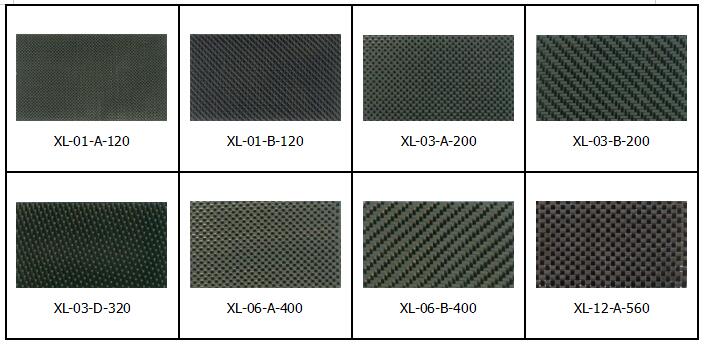

XL-01-A-100 | T300-1K | T300-1K | 平紋 (Plain) | 7.5 | 7.5 | 100 | 0.14 | 100 |
XL-01-A-120 | T300-1K | T300-1K | 平紋 (Plain) | 9 | 9 | 120 | 0.16 | 100 |
XL-01-B-120 | T300-1K | T300-1K | 斜紋 (Twill) | 9 | 9 | 120 | 0.16 | 100 |
XL-01-A-140 | T300-1K | T300-1K | 平紋 (Plain) | 10.5 | 10.5 | 140 | 0.17 | 100 |
XL-01-B-140 | T300-1K | T300-1K | 斜紋 (Twill) | 10.5 | 10.5 | 140 | 0.17 | 100 |
XL-01-D-160 | T300-1K | T300-1K | 八枚緞紋 (8HD) | 12 | 12 | 160 | 0.18 | 100 |
XL-03-A-180 | T300-3K | T300-3K | 平紋 (Plain) | 4.5 | 4.5 | 180 | 0.28 | 100 |
XL-03-A-200 | T300-3K | T300-3K | 平紋 (Plain) | 5 | 5 | 200 | 0.30 | 100 |
XL-03-B-200 | T300-3K | T300-3K | 斜紋 (Twill) | 5 | 5 | 200 | 0.30 | 100 |
XL-03-A-240 | T300-3K | T300-3K | 平紋 (Plain) | 6 | 6 | 240 | 0.32 | 100 |
XL-03-B-240 | T300-3K | T300-3K | 斜紋 (Twill) | 6 | 6 | 240 | 0.32 | 100 |
XL-03-A-280 | T300-3K | T300-3K | 平紋 (Plain) | 7 | 7 | 280 | 0.34 | 100 |
XL-03-B-280 | T300-3K | T300-3K | 斜紋 (Twill) | 7 | 7 | 280 | 0.34 | 100 |
XL-03-D-320 | T300-3K | T300-3K | 八枚緞紋 (8HD) | 8 | 8 | 320 | 0.36 | 100 |
XL-06-A-280 | T300-6K | T300-6K | 平紋 (Plain) | 3.5 | 3.5 | 280 | 0.36 | 100 |
XL-06-A-320 | T300-6K | T300-6K | 平紋 (Plain) | 4 | 4 | 320 | 0.38 | 100 |
XL-06-B-320 | T300-6K | T300-6K | 斜紋 (Twill) | 4 | 4 | 320 | 0.38 | 100 |
XL-06-A-400 | T300-6K | T300-6K | 平紋 (Plain) | 5 | 5 | 400 | 0.42 | 100 |
XL-06-B-400 | T300-6K | T300-6K | 斜紋 (Twill) | 5 | 5 | 400 | 0.42 | 100 |
XL-12-A-400 | T700-12K | T700-12K | 平紋 (Plain) | 2.5 | 2.5 | 400 | 0.46 | 100 |
XL-12-A-480 | T700-12K | T700-12K | 平紋 (Plain) | 3 | 3 | 480 | 0.52 | 100 |
XL-12-B-480 | T700-12K | T700-12K | 斜紋 (Twill) | 3 | 3 | 480 | 0.52 | 100 |
XL-12-B-680 | T700-12K | T700-12K | 斜紋 (Twill) | 4 | 4 | 640 | 0.64 | 100 |
注:1。織物經緯密度、幅寬可根據用戶要求生產。
